Total solution in battery management.

BDS

Battery Monitoring System

Character

  • Suitable for medium/small sized UPS batteries
  • Monitor 24cells per battery bank
  • Application : Telecom/mobile market, Charger and etc

BDS Multi-communication

BDS Multi-communication

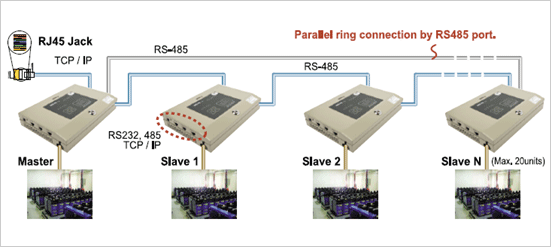

Max 20 units of BDS is possible to connect serially by RS485 communication.

Specification

Measurement RangeBattery Capacity : 5 ~ 6,000 Ah (For Sealed/lead acid, Ni-Cd batteries)
System Voltage : 0 ~ 900 VDC
Load Current : ±999.9 A
Cell Voltage : 1.2, 2, 4, 6, 8, or 12 VDC
Internal Resistance : 0.010 ~ 99.999 mΩ
Temperature : -20℃ ~ 80°C
Accuracy / ResolutionSystem Voltage : ±0.5% / 0.1 V
Load Current : ±1% / 0.1 A
Cell Voltage : ±0.5% / 0.01 V
Internal Resistance : ±2% / 0.001 mΩ
Temperature : ±2% / 0.5 °C
I.R. (Internal Resistance) Measurement Speed3 seconds per cell
Data AcquisitionMeasuring Interval : Adjustable from 10 min to once daily (cell/unit readings)
Data Transfer : SNMP, TCP/IP Modbus, RS232
Internal Storage : 20 Records, Approximately 20 days backup
SoftwareCentroid Snet1, Centroid Snet2
EnvironmentOperating Temperature : 0 ~ 65 °C (32 ~ 150 °F)
Relative Humidity : Under 80%
Power RequirementsInput Power : 36 ~ 150 VDC, 100 ~ 240 VAC
DimensionsMain Unit : 195 x 270 x 60 mm (7.7 x 10.6 x 2.4 in.)

Installation pictures

  • BDS 설치사진
  • BDS 설치사진
  • BDS 설치사진
  • BDS 설치사진
  • BDS 설치사진
※We have installed BDS over 10,000 sets at Korea Telecom, Electric Power and lots of UPS systems in S.Korea.
