battery monitoring system BMS

Suitable for large sized UPS batteries

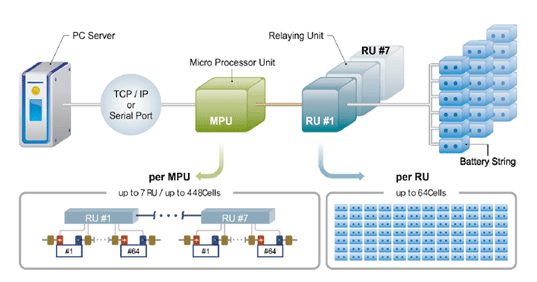

With a flexible expanding system, iPQMS can supervise an emergency power supply and up to 448 cells of battery strings in real time with one monitoring/control unit. This reformative expansion capacity allows the user to arrange and install the whole system with ease, thus saving a great amount of installation expenses.
Monitor Min. 50cells to Max. 448cells per system
Application: Power plant, Substation, IDC and etc

Measurement Range	Battery Capacity : 6,000Ah (For Sealed/lead acid, Ni-Cd batteries) System Voltage : 0 ~ 999.9 VDC Load Current : ±999.9 A Cell Voltage: 1.2, 2, 4, 6, 8, or 12 VDC Internal Resistance: 0.001 ~ 299.999 mΩ Temperature : -20℃ ~ 80°C
Accuracy / Resolution	System Voltage : ±0.5% / 0.1 V Load Current: ±1% / 0.1 A Cell Voltage : ±0.5% / 0.01 V Internal Resistance : ±2% / 0.001 mΩ Temperature : ±2% / 0.5 °C
I.R. (Internal Resistance) Measurement Speed	3 seconds per cell
Data Acquisition	Measuring Interval : Adjustable from 10 min to 24 hours (cell/unit readings) Data Transfer : TCP/IP, Modbus TCP/IP, SMS with server(optional service) Internal Storage : 30 Records,Approximately 1-month backup
Software	Centroid Snet1, Centroid Snet2
Environment	Operating Temperature : 0 ~ 65 °C (32 ~ 150 °F) Relative Humidity : Under 80%
Power Requirements	Input Power : 43 ~ 250 VDC, 100 ~ 240 VAC
Dimensions	Main Unit : [MPU] 310 x 280 x 90 mm(12.2 x 11 x 3.5 in.) RU or Module : [RU] 310 x 170 x 85 mm
